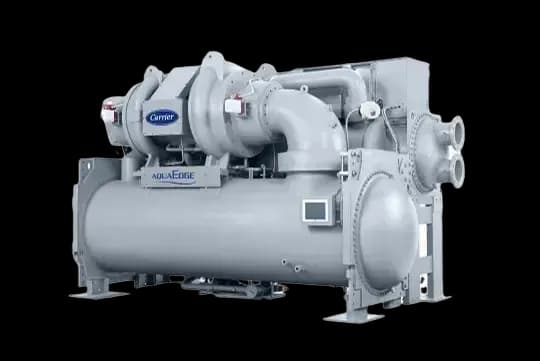

Carrier Aquaedge® 19DV

features

Performance Features

Low energy consumption during part load and full load operation
IPLV down to 0.295
R-1233 zd(E) refrigerant with A1 safety rating
EquiDrive™ back to back two-stage compressor with Independent Guide Vane Control
Refrigerant lubricated ceramic bearings
Hybrid falling film evaporator
Crescent shaped economizer
Touchscreen control panel with multilingual display
Compatible with Carrier Comfort Network® (CCN) communication link

Reliability

ASME constructed heat exchangers
Two-stage 350-1,150 tons (1231 to 4044 kW) compressor with no scheduled teardown
Semi-hermetically sealed compressor and motor
Automated controls may be tested before start-up
Air-cooled, non-ventilated, totally enclosed variable frequency drive

Maintenance

Password protected extensive service menu with built-in diagnostic capabilities, troubleshooting, and corrective action recommendations for preset alarms
Alarm and alert files maintain the last 25 time and date stamped messages in memory
Configuration data backup with non-volatile memory
Thermistor-type temperature sensor with quick connects in each water nozzle
Steel single rupture disk
Service contract available

Installation

Low voltage control circuits
Automated controls test on start-up

options

Factory-Installed

Enhanced tubing, .028 or .035 in. (0.711 or 0.889 mm): Internally/externally enhanced copper tubing – evaporator/condenser
Marine waterboxes: 150 psig (1034 kPa) waterbox
Flanged evaporator and/or condenser waterbox nozzles
1, 2, or 3 pass evaporator or condenser waterside construction
Economizer bypass valve
Modulating Envelope stability control (hot gas bypass)
Free cooling
IEEE-519 Option
BACnet® communications
Customer factory performance testing

Field-Installed

BACnet® Carrier translator
LonWorks® Carrier translator
Sensor package
Separate storage tank and pumpout unit
Stand-alone pumpout unit
Soleplate package
Spring isolator kit
